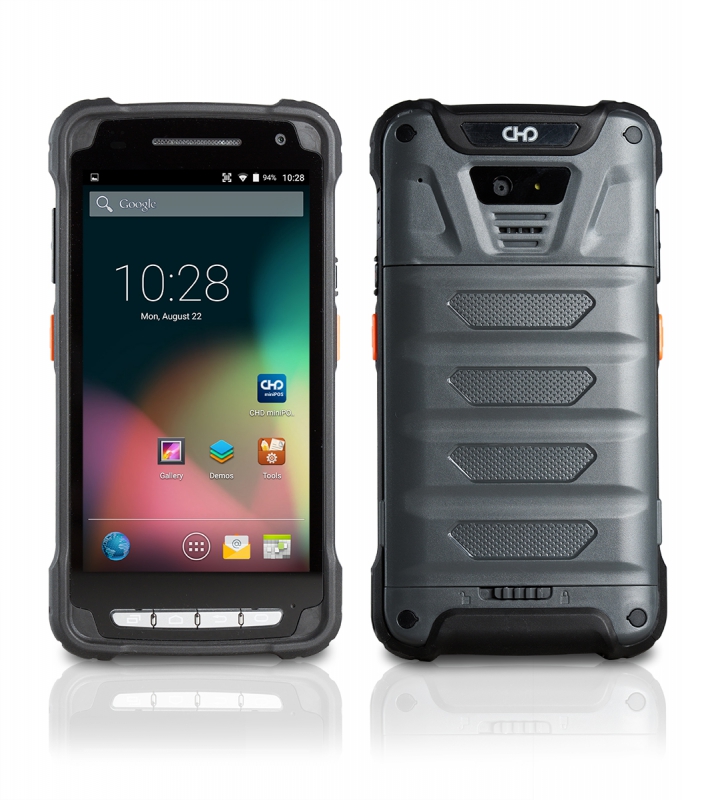

CHD 8

Portable data terminal

Powerful Qualcomm Snapdragon will free your work
Qualcomm's Snapdragon MSM8916 processor is market-proven AP (Application Processor) which has Quad-Core with 1.4Ghz clockspeed. It is truely SoC (System on a Chip) having 4G LTE, Wireless LAN, Bluetooth, S-GPS and Camera bus interface.

Google AndroidTM Lollipop is the heart of the system
CHD 8 runs on Google's AndroidTM 5.0.2 Lollipop Operating System.

Wider & Brighter IPS display provides better visibility

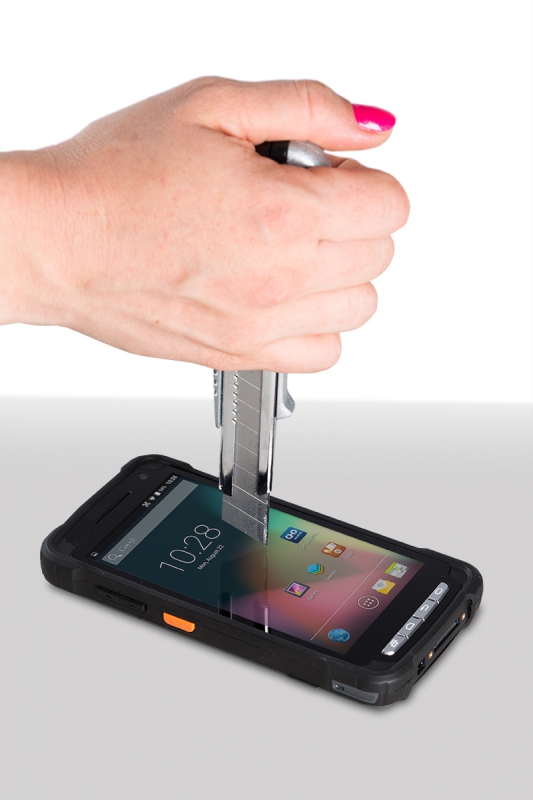

CHD 8 adopts 5.0" IPS panel TFT-LCD with capacitive touch screen and it supports wide-viewing angle and daylight readability in order to maximize the best performance in the out-field. To support harsh environment, top of screen is protected Gorilla Glass 3 glass for maximum durability.

Frequently using 4 "HARD" keys towards field-work-forces
Most of Enterprise EDA in the market adopts capacitive-based touch button even for the most frequently used Home, Menu, Back button. Not every user prefer to use Stylus pen in the field, CHD 8 features with 4 hard keys : Home, Menu, Back button and plus user-programmable/assignable key, which is very essential for various field applications.

Powerful Wireless; 4G LTE & IEEE 802.11 a/b/g/n and versatile data-input functions; 1D/2D, NFC & MSR
As of Enterprise mobility purposes, CHD 8 is completely tuned for Enterprise work-forces; smooth hand-over between WWAN and WLAN each other, seamless roaming among many routers & access points in the harsh working environment, because Enterprise users prior seamless connectivity to speed. Also, to provide various data input
functions up on various customers' need, CHD 8 is built-in with latest 1D/2D imaging barcode scanner, NFC HF RFID 13.56Mhz & encrypted 3-track Magnetic Stripe Reader. Especially, MSR is an optional feature and it is free from any possible counterfeit and unauthorized data access thanks to data encryption technology. CHD 8 is truly hybrid because shape & design is following commercial smartphones but features are truly towards Enterprise users.



Android is a trademark of Google Inc

Physical parameters

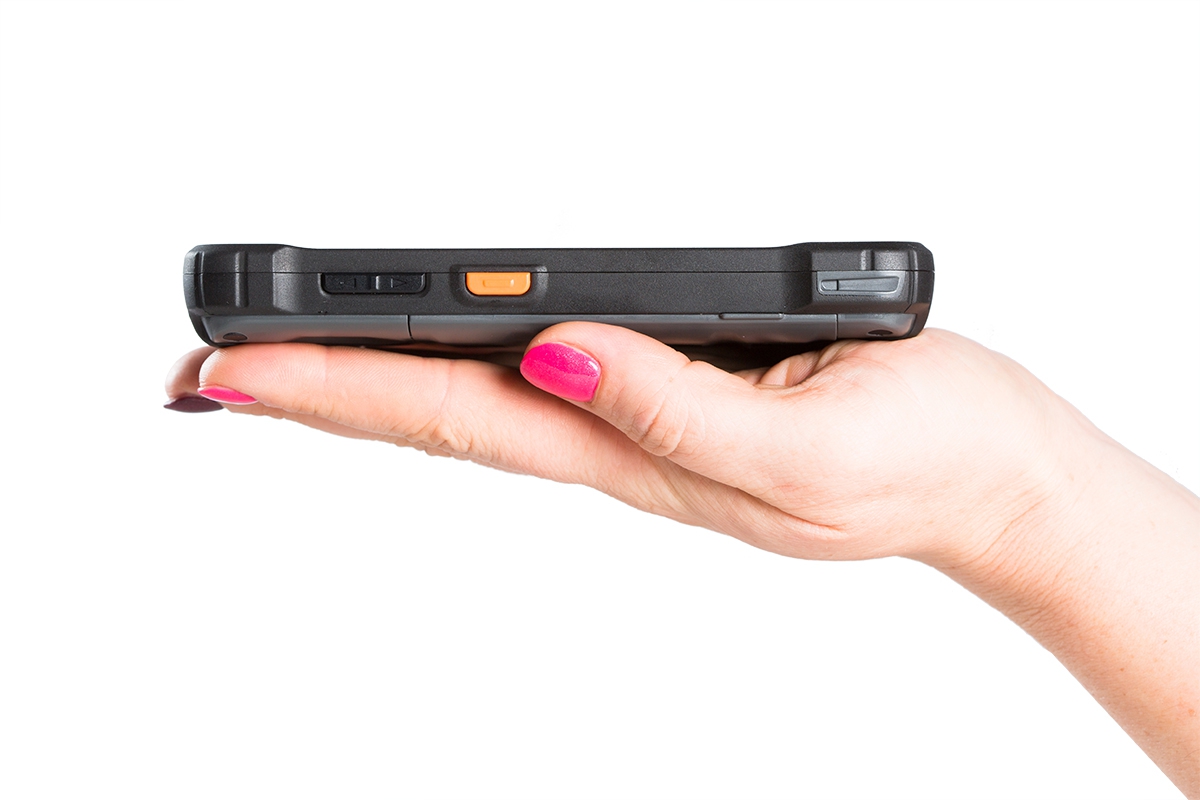

Dimensions 156 x 82 x 21mm
Weight 279 g
Keys 4 hard keys:
- home;
- menu;
- back;
- programmable
Operating temperature -20°C - 60°C
Storage temperature -40°C - 70°C

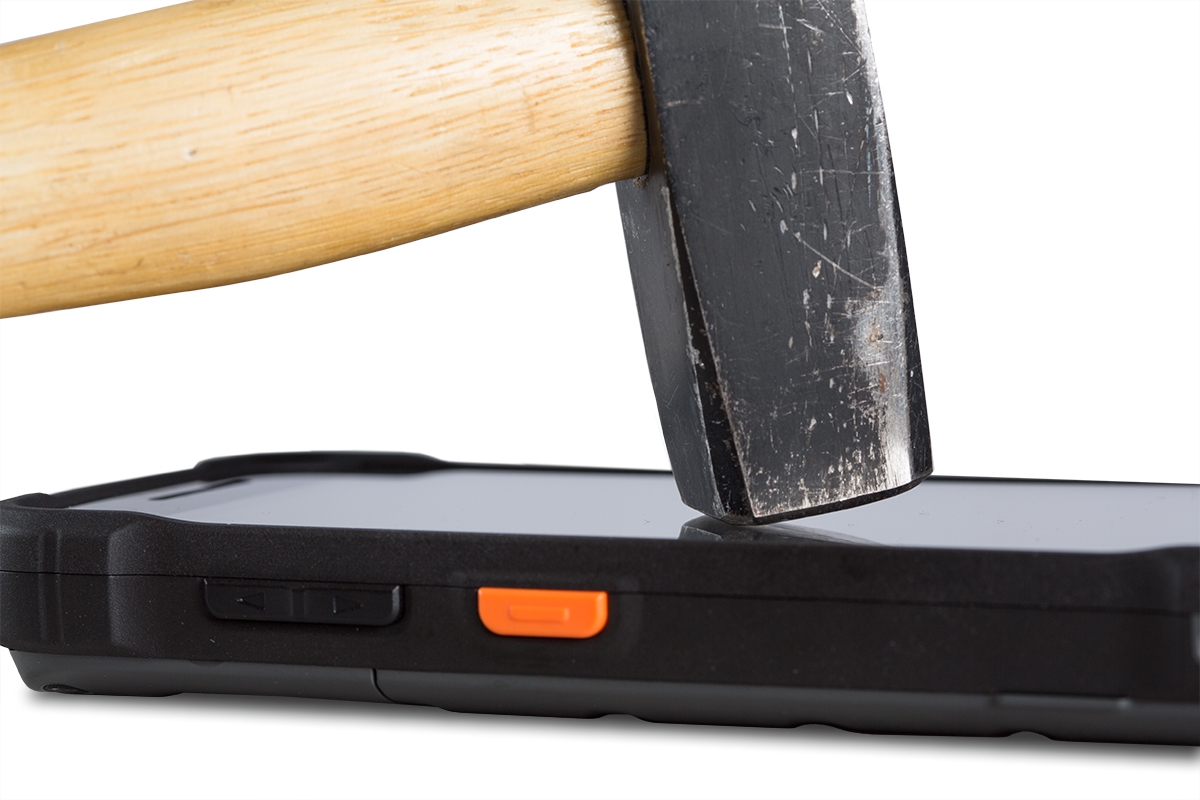

Shock resistance 1.5m (5 ft) per MIL-STD 810G

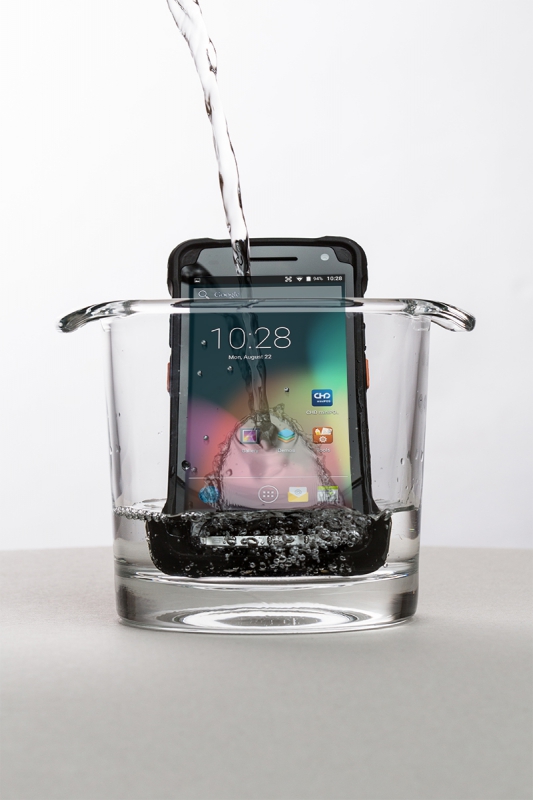

Protection IP67
Indicators Indicator: 2 x dual color LEDs on front:
- power;
- warning;
- scan reading scan alert: vibration
Case Plastic
Case colour Dark
System
Operating system Google AndroidTM 5.0.2 Lollipop
Android is a trademark of Google Inc
CPU Qualcomm MSM8916 @ 1.4Ghz Quad-core
Memory 1GB RAM / 2GB RAM (Optional); ROM: 8GB / 16GB (Optional) NAND Flash
Display 5.0 in, IPS panel, 1280 x 768 pixel (WVGA); Gorilla Glass 3; Daylight readable, Wide viewing angle, Capacitive touch, Anti-raindrop
Expansion slot User-accessible micro-SD cards up to 32GB SDHC
Barcode scanner

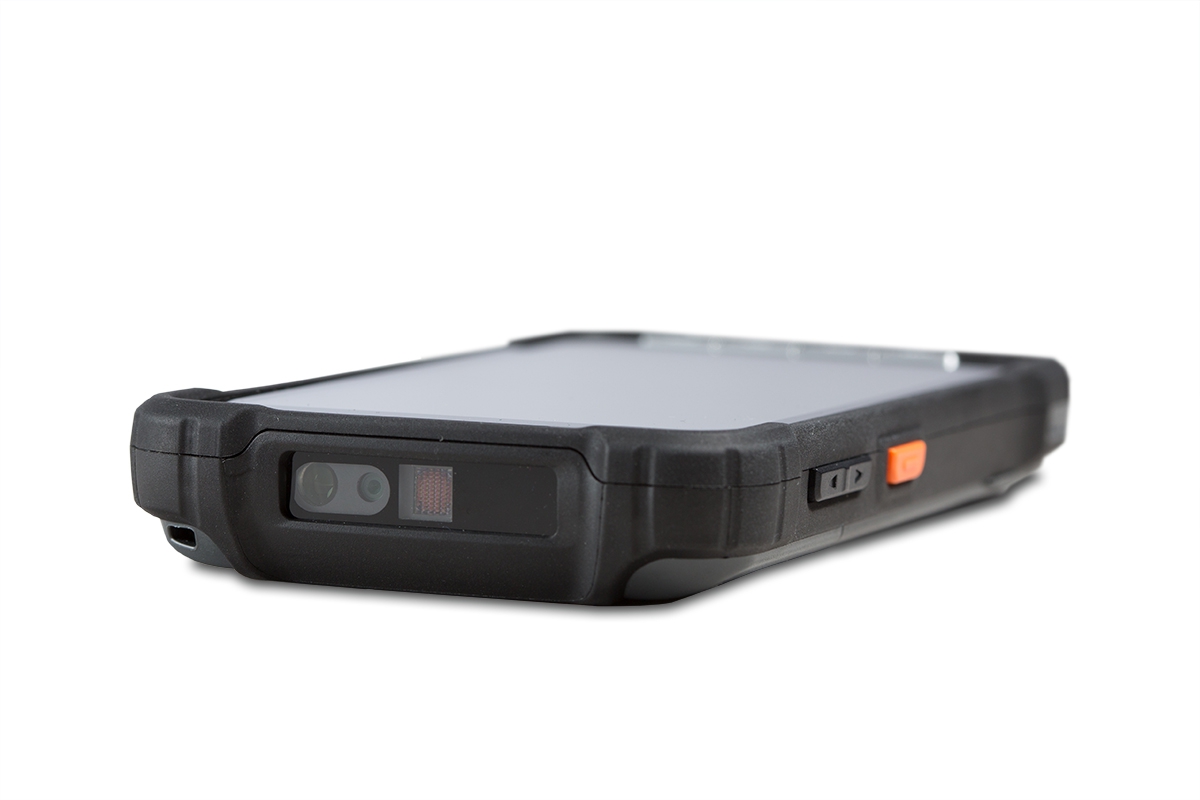

Scanner 1D/2D Imager : supporting all 1D/2D standard Symbology including GS1 Databar
Integrated camera
Integrated camera 8.0 MP (Rear)/2.0 MP (Front) color with LED flash
Interfaces

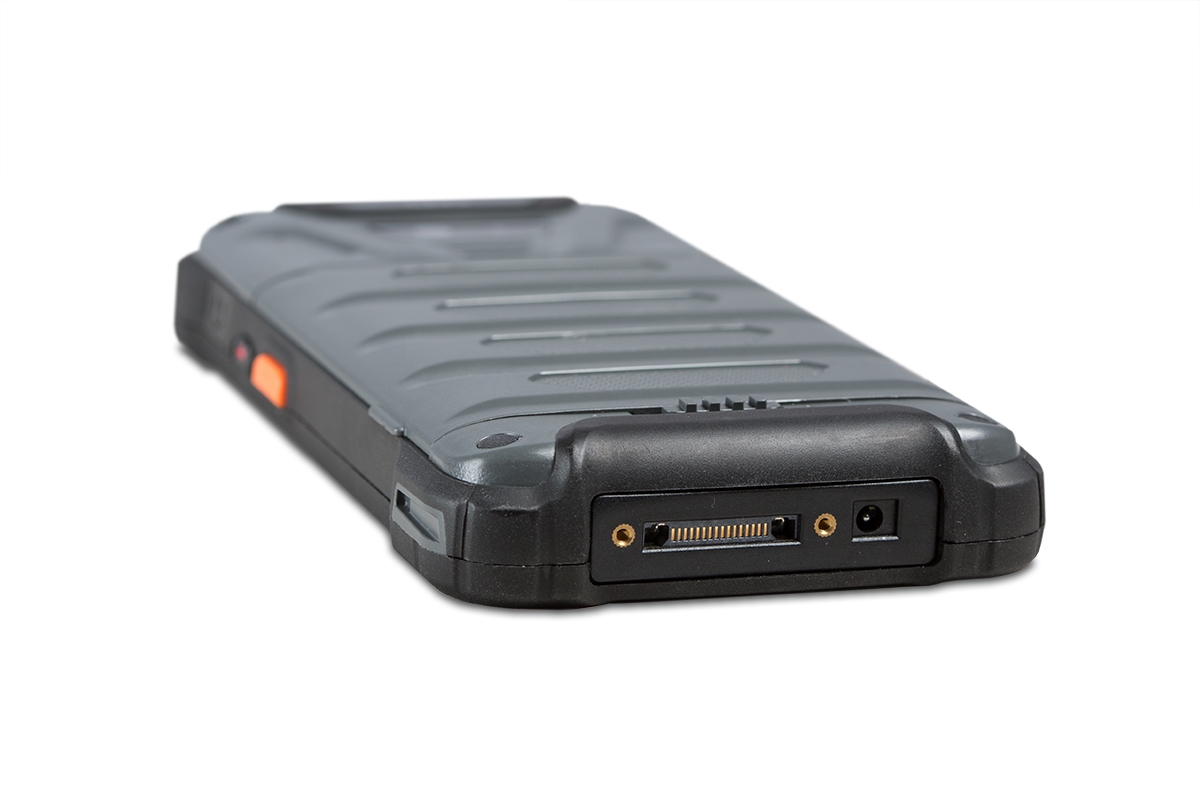

USB 2.0
Communications
Wireless IEEE 802.11 a/b/g/n Data rates: 150 Mbps
Bluetooth +
GSM/GPRS EDGE/GPRS/GSM:850/900/1800/1900; WCDMA: 850/900/1900/1700/2100 MHz; LTE USA:FDD2, FDD4, FDD5, FDD13, FDD17
Global Positioning System 12 channel integrated GPS: assisted via WAN carrier: Network independent: accuracy within 3m
NFC P2P NFC with 1 SAM slot (13.56Mhz HF RFID) Supported; Tag-Ics : MIFARE® 1k/4k/Plus, MIFARE UltraLight, MIFARE; UltraLight C, MIFARE DESFire, MIFARE DESFire EV1, ISO 14443; A & B, ISO 15693 tags
Power
Battery 3,100mAh Li-ion rechargeable
Additional extras
Standart accessories - AC/DC power adaptor & country plug;
- Capacitive Stylus pen & tether;
- Hand strap;
- Battery;
- LCD protection film
Optional accessories - USB sync cable;

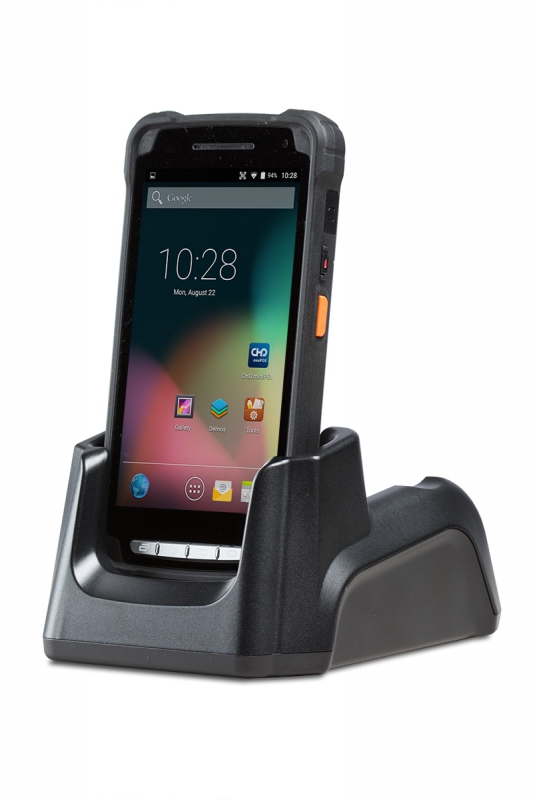

- Single-slot cradle;
- 4-slot cradle;
- 4-slot Battery Charger
4 slot battery charger
Regulatory Approvals ans Compliance
Safety EMC, UL, RF, LED approvals
Radio FCC, CE, KCC Marks
Environmental RoHS II & WEEE compliant
