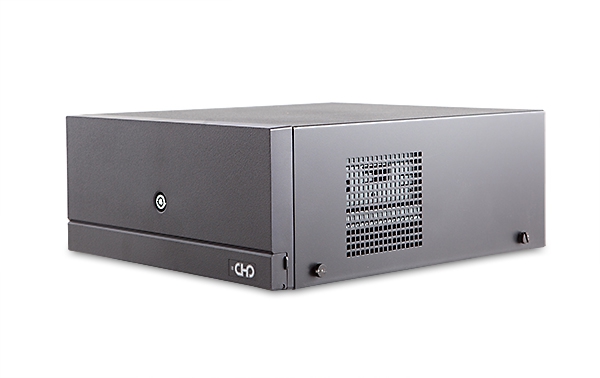

CHD 9200

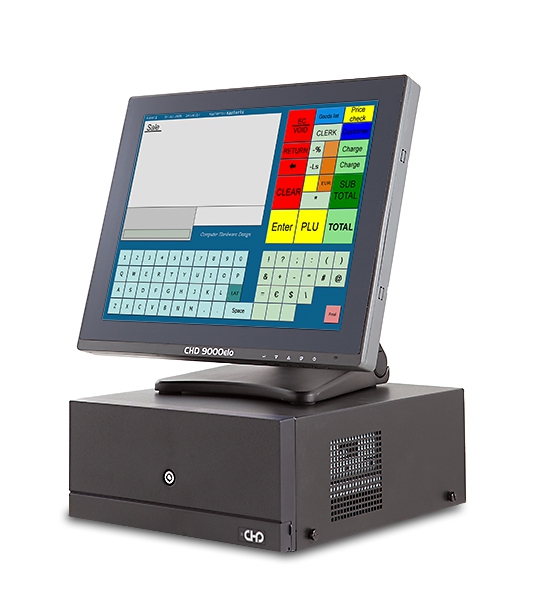

Modular POS System
  • Modularization of HDD / ODD / PWR supply / PWR USB for easy maintenance and service
  • VGA and DisplayPort images for advertising and commercial purposes
  • Supports AMT/vPro for remote management functionality
  • 5 standard DB9 COM ports (plus 1 more COM RS422/485 optional)
  • Maximum 14 USB ports with the PWR USB module providing flexibility
  • Golden finger docking connection for less cables and less screws
  • Copper heat sink increases operation stability
  • Rich I/O interface for various peripherals and applications
  • RAID technology for transactions data back-up
  • Intel solution Dual LAN ensures safety of all business transactions
System
CPU Celeron G540 2.5G, L2 2M, 65W
RAM DDR3, Long-DIMM x 2, up to 8GB, 1066/1333MHz
HDD 3.5" x 2 HDD bays support SATA HDD

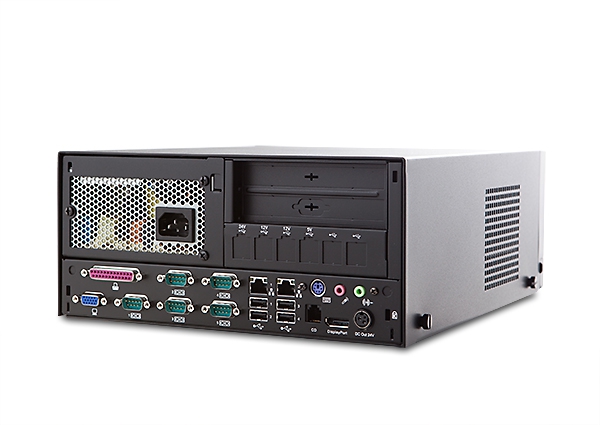

Ports 5 (COM1/COM2/COM3/COM4/COM5, 5V/12V by BIOS selecting)
USB 4 + 2
LAN RJ-45 x 2 (Intel Giga LAN)
Drawer RJ-11 x 1 (12V/24V, default setting 24V)
Chipset Intel® PCH Cougar Point 6.1W, Q67 (SATA Generation 2.0/3.0 & RAID 0,1 available)
Graphical card Intel® HD Graphics 2000/3000, Integrated in CPU, frequency 850MHz (dynamic frequency up to 1.1GHz)
Physical parameters
Weight 8 kg
Dimensions 270 x 300 x 120 mm
Power Internal 350W ATX Power Supply
Operating temperature 5°C ~ 35°C
Operating humidity 20% - 85% RH non-condensing
