CHD 3030

Electronic Cash Register

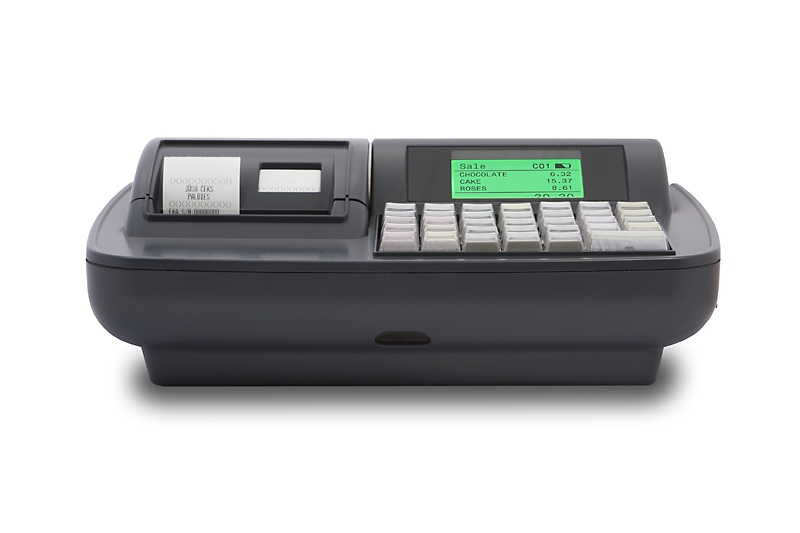

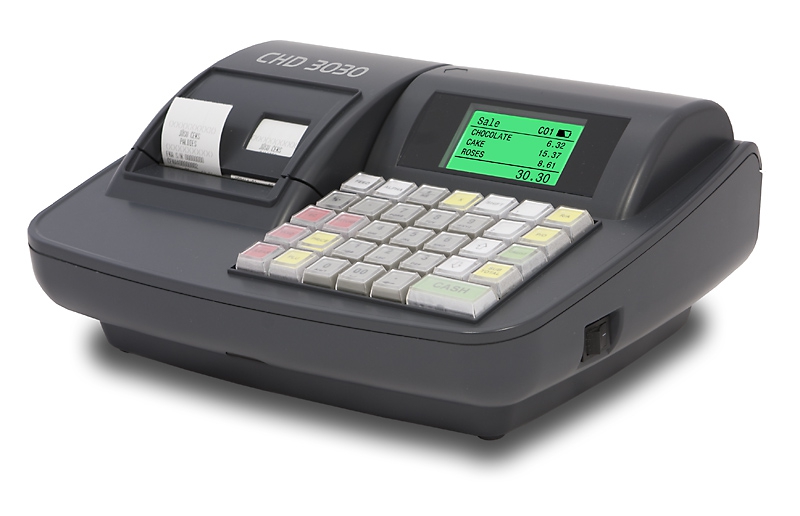

The entry level, small size cash register CHD 3030 is created for small to medium size retail locations. This cash register, despite its compact size, incorporates the full functionality of a standard cash register. And even more - it has a graphic LCD screen, PC communications options, easy receipt loading system and an optional UV light for checking the banknotes.

SYSTEM OPTIONS SETTINGS

  • Fiscal / Non-fiscal
  • Fiscal printer function
  • Configurable keyboard layout
  • Instore barcode format setting
  • Macro function setting
  • Service reminder on display and on report
ECR parameters
PLU count 5000
PLU groups 100
Departments 8
Taxes 9
Payments 3
Currencies 5
Users 20
Graphical logo
Reports Financial, Departments, PLU, Clerk, In-Drawer, Hourly
Electronic journal
Physical parameters
Dimensions 22 x 28 x 12 cm
Weight 1.6kg
Case Plastic
Operation temp. 0ºC līdz +45ºC
Humidity 10% - 90%
Keyboard Stroke
Number of keys 34
Sound indicators Yes
Operator display LED, 1x10 numeric
Customer display Graphic, 128x64 dot
RS232 Interface 2x
USB
UV detector Yes
Cash drawer port
Printer
Printer type Thermal
Printer reliability 50 km or more
Print speed 60 mm/s
Number of columns 20 symbols x 2
Printer width 38mm
Paper roll diameter 50 mm
Thermal paper rolls 38mmx30m
Battery
Additional battery
Battery type 1100mAh or 2100mAh
