CHD 6800WP

10.1" True All In One POS Performance System / Windows

A Truly All In One Design

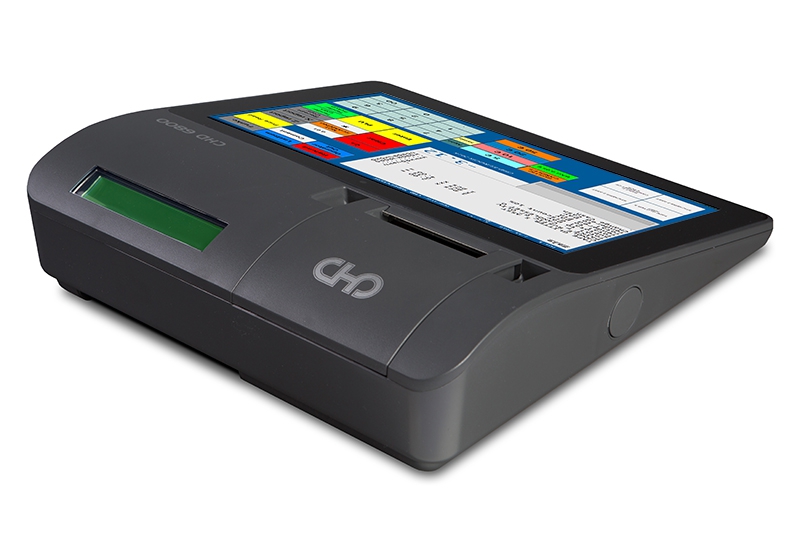

CHD 6800W combines a high-performance CPU, reliable 58mm thermal printer and a customer screen into one housing. The all-in-one design unclutters retailers’ working space, while maintaining a fully functional sales point.

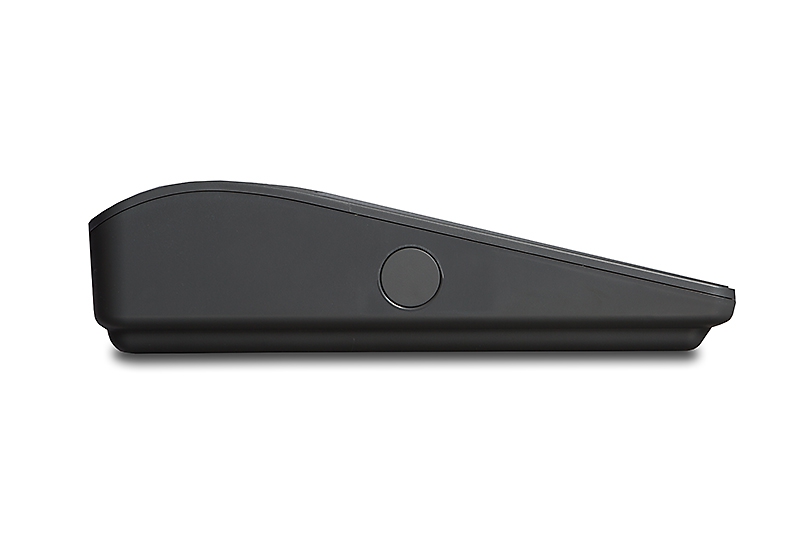

Sleek and compact design with small footprint allows CHD 6800W to blend seamlessly into any store environment. Retailers have more space at the checkout to display high margin merchandise, engage with the customers or for other value-adding activities.


Performance And Reliability
A choice between different CPUs allows retailers to select the right performance for their needs. Top-notch engineering combined with retail hardened hardware and components ensures that retailers can rely on the CHD 6800W, even with 24/7 operations. CHD 6800W is surprisingly easy to use without compromising on the performance.


On The Go
Mobility is a key factor for many retailers. A long-lasting battery, small size and wireless connectivity, including the optional 4G/LTE module, allows the POS system to be freely moved around as needed. Exchange of vital data on the go, wireless back-up, open air and outdoors operations – CHD 6800W can be used in almost any sales environment!



Reliable hardware:

  • Retail hardened hardware
  • Automotive grade components
  • Life expectancy: 7+ years
  • Designed for 24/7 operations

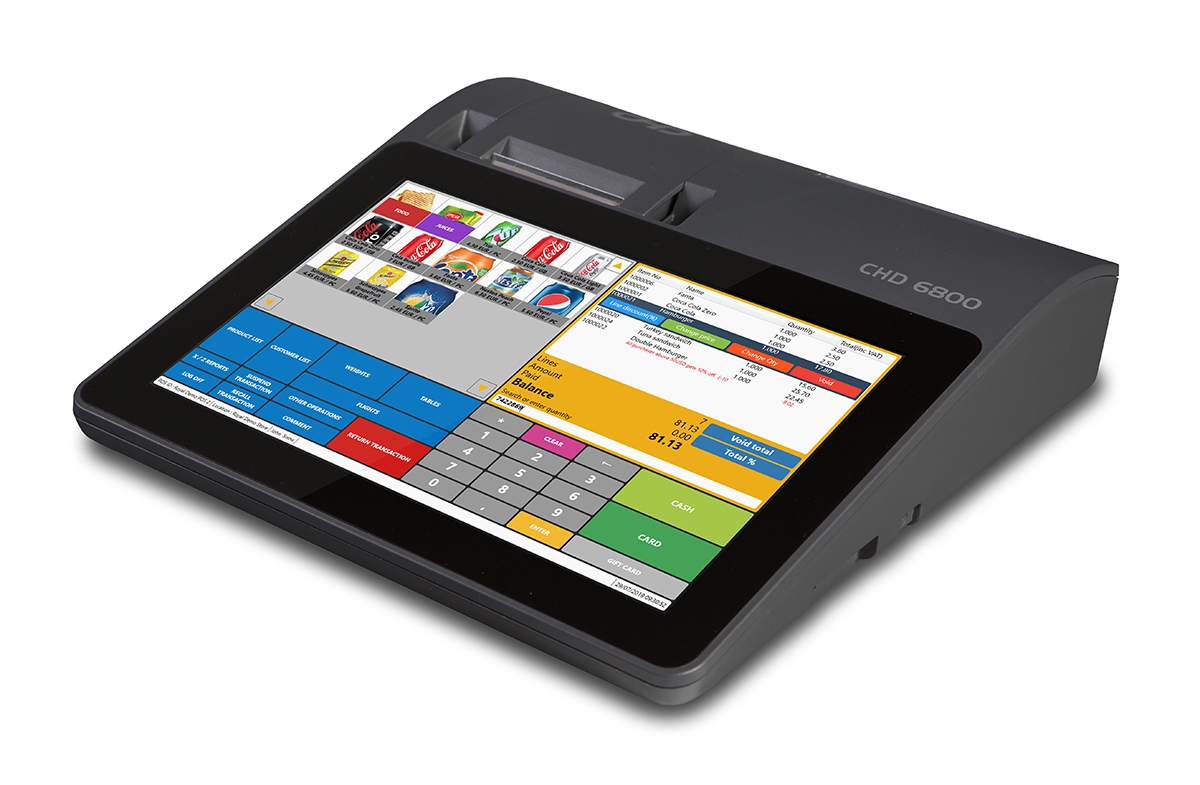

Crystal clear operator display:

  • 10" P-CAP screen
  • Daylight readable

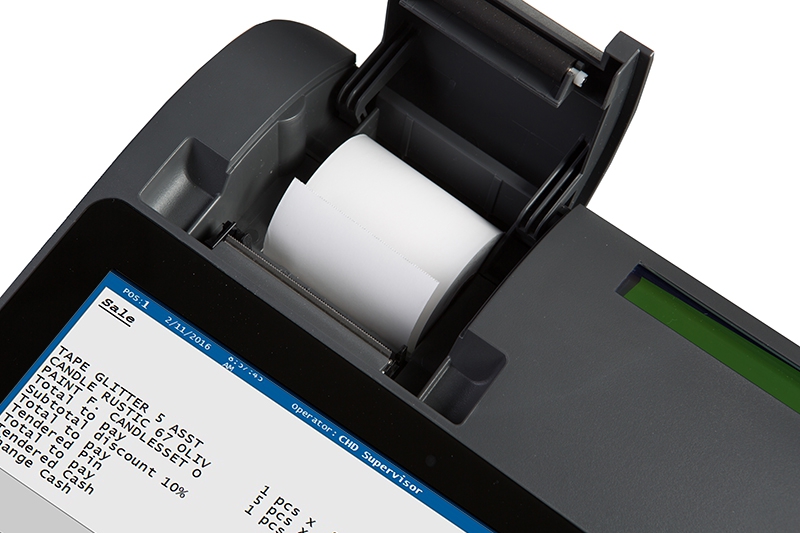

58 mm thermal printer:

  • Print speed: up to 100 mm/s
  • Easy paper roll change
System
Operating system Microsoft Windows 10 Enterprise 2016 LTSB
CPU Intel® Pentium® N4200
RAM 4GB (8GB max), 2 memory slots
Storage 64 GB SSD M.2 2242 socket
Graphics chipset Intel® HD graphics 505
miniPCle slots 2x
Wi-Fi 802.11 a/b/g/n Realtek® RLT8821AF
Bluetooth 4.0
Physical parameters

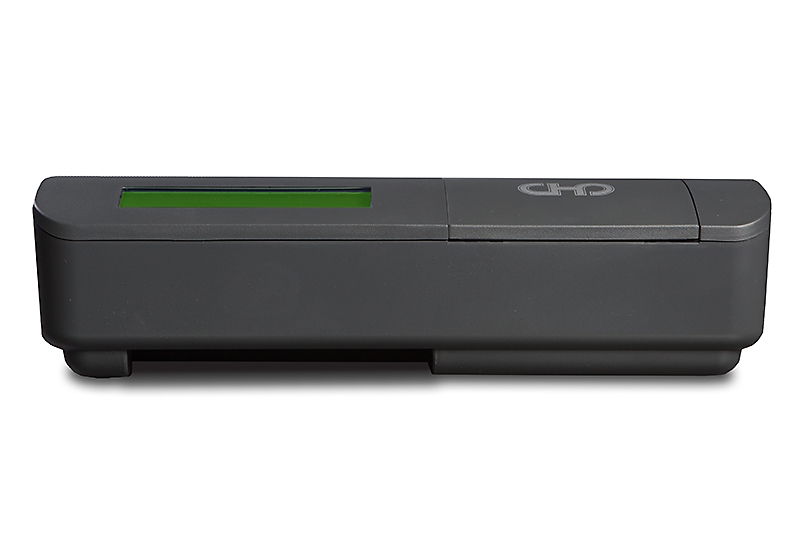

Customer screen LCD 240x48 px
USB ports 4x (2x Back + 2x Side) USB 3.0 HOST type A-sockets, 3x USB 2.0 inside
RS-232 ports 2x with +5V power supply at back panel, 1x inside
HDMI port 1x
Cash drawer port 1x RJ11, 9V
SD slot Yes
LAN Gigabit Ethernet, Intel® I210-AT
WWAN / 4G Optional 1x SimCard slot
i-Button Optional
Audio Line in/out
VESA mount Standard VESA 100
Battery Optional, Li-Ion 7,2V/5800 mAh or 7,2V/8700 mAh
Fiscal memory
Weight 2.6 kg
Size 270 (W) x 270 (L) x 80 (H) mm
Housing Metal + plastic
Display
Display size IPS 10.1" 1280 x 800 Landscape
Touch Capacitive, multitouch, 10 points
Display design True Flat
Printer
Printing method Thermal
Paper width 58 mm
Print speed 100 mm/s max.
Printer mechanism SII CAPD 245
Printer pulse activations 100 million or more
Printer abrasion resistance (km) 50 or more
Auto cutter
Printer cutter lifecycle 500,000 or more
Paper roll change method Easy-load
